T-10AP 10W Desktop Mixer Amplifier

T-10AP 10W Desktop Mixer Amplifier

SYMBOL: T-10AP

Price on request
availability: large number
print

Product description

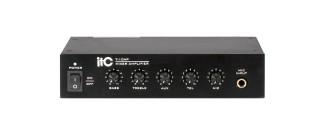

T-10AP 10W Mixer Amplifier
Wall mount or tabletop designs available. Mic1 input by 1/4" phone jack, Aux1 input by dual RCA, tel input by phoenix connector. Mic with Vox priority and telephone input with secondary input over all other inputs. 100V and 4-16 ohms speaker outputs. AC 120V or 230V to DC 12V power adapter to supply power. Mic1, Aux1 and tel volume control and
bass/treble tone control. Wall mount bracket available.

Technical data

Rated Power Supply

12 V DC
Output Power

10 W
Outputs

4Ω, 100V, COM
Frequency Response

50Hz - 15 kHz
Dimensions 200 x 150 x 44 mm
Weight

3,2 kg

Documents for download

ManualSpecificationCE 1Raport CE 1CE 2Raport CE 2
