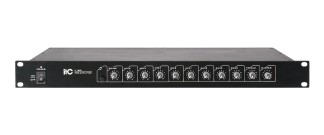

T-1S01 Mixing Preamplifier
Product description
The T-1S01 is a public address pre-amplifier with five balanced MIC inputs, three AUX level inputs and one EMC(priority) level inputs.
Priority muting is achieved via MIC 2 and EMC for overriding music for paging and emergency alarms.
Individual gain controls are provided for MIC and AUX inputs, bass and treble controls are provided for overall tone control.
Features
* 5-channel MIC input and 3-channel Aux input.
* With 1-channel EMC input.
* Independent volume control, MASTER volume control.
* With compulsive insert and Priority function.
* MIC balance input interface with phantom power.
* Individual Gain controls for MIC
* EMC has priority over all inputs except MIC 2
* Bass and Treble Tone Controls
* AC 110V or 230V and DC 24V operation
Technical data
| Power Supply |
220-240V |
| Inputs MIC 1-5 |
5mV/600W |
| Inputs AUX 1-3 |
200mV/10kW |
| Outputs |
0 dB/ 600W |
| Frequency Response |
20Hz - 20 kHz |
| S/N MIC |
80 dB |
| S/N AUX |
85 dB |
| Phantom |
+ 48V |
| Dimensions |
19”/1U |
| Weight |
8.0 kg |
