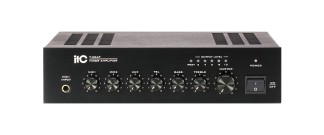

T-20AP 20W Desktop Mixer Amplifier
SYMBOL: T-20AP
Price on request
availability: large number
print
Product description
T-20AP 20W Mixer Amplifier
Mic1 input by combined connector of 1/4" phone jack and XLR with phantom power, Mic2 by 1/4" phonejack, Aux1 input by dual RCA, tel input by phoenix connector. Line output by dual RCA type. Mic with Voxpriority(with Vox level control) and telephone input with secondary input over all other inputs. 100V, 70Vand 4-16 ohms speaker output. AC 120V or 230V operation. Mic1-2, Aux1, tel, master volume control andbass/treble tone control. High temp, short circuit and over load protection.
Technical data
| Zasilanie |
230 V |
| Rated Power Output |
20W |
| Inputs |
MIC: 5mV/600W AUX: 400mV/15kW |
| Outputs |
4Ω, 70V, 100V, COM |
| Frequency Response |
50Hz - 16 kHz |
| S/N |
MIC:66dB; AUX:80dB |
| Dimensions |
360x274x66 mm |
| Weight |
2,5 kg |
