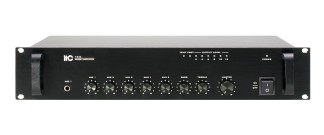

T-240 Mixer Amplifier (Phone Jack & MIC Input)
Product description
The basic public address mixer amplifier. It is featured of 3 microphone inputs, 2 aux inputs and 1 EMC input.
Priority muting is achieved via EMC for overriding other inputs except Mic1 on front panel.
Individual gain controls are provided for Mic 1-3 and Aux 1-2, bass and treble controls and master volume control are provided for overall tone control. 70V, 100V and low impedance 4-16 ohms speaker outputs are provided. Extensive protection from short-circuit, overload andhigh temp.
Features
* Mixer amplifier for paging and background music system
* Rated power 240W
* 2U rack mount
* 70V, 100V and low impedance 4-16ohm speaker output
* Three Mic inputs by phone jack type
* Mic 1 with VOX priority and VOX level on front panel
* Mic 2-3 by phone jack on rear panel
* Two Aux Inputs and 2 line inputs for spare use
* One EMC priority input
* EMC has priority over all inputs except MIC1
* Mic 1-3, Aux 1-2 and master volume controls and bass/treble tone control
* Short circuit, overload and high temp protection
Technical data
| Power Supply | 220-240V |
| Rated Power Output | 240W |
| Outputs | 4Ω, 70V, 100V and COM |
| Frequency | 50Hz - 16kHz |
| THD | less than 1% |
| S/N | MIC:66dB; AUX:80dB |
| Dimensions | 19”/2U |
| Weight | 16,6 kg |
