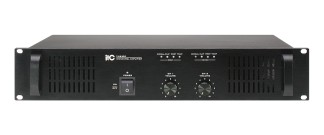

T-2S500 Two Channel Power Amplifier
Product description
The 2 channel power amplifiers are designed for commercial and industrial public address applications. With two separate amplifier in a single chassis and rated power 500W per channel which provides a wide selection to meet different size sound system needs.
Both balanced and unbalanced line inputs for each channel make it selectable for installer, balanced line outputs for each channel feed to another power amplifier as well as secure the signal transmission is less noise and longer distance. 70V, 100V and 4-16ohm speaker outputs for each channel are convenient for installation when selection different speaker matching. Master volume controls for each control are included. Complete protection includes
over heat, over load, clip & short circuit. Indications for power, signal, clip, protection and Temp.
Features
* 2 separate amplifier into one chassis
* Rack mount amplifier in 3U
* Rated power 500W per channel
* 70V, 100V and 4-16ohm speaker outputs for each channel
* Isolated transformer for human safety operation
* Balanced XLR type line input and unbalanced 1/4 inch XLR phone jack line input for each
Channel
* Balanced XLR type line outputs for each channel feed to another power amplifier
* Reliable protection of over heat, over load, clip & short circuit
* Indications for power, signal, clip, protection and temp
* Excellent device of radiator cooling fan that ensures working effectively
Technical data
| Power Supply | 220-240V |
| Rated Power Output | 2 x 500W |
| Outputs | 2 x 4Ω, 70V, 100V, COM |
| Frequency Response | 50Hz - 16 kHz |
| THD | less than 1% |
| S/N | > 90dB |
| Dimensions | 19"/3U |
| Weight | 30,0 kg |
