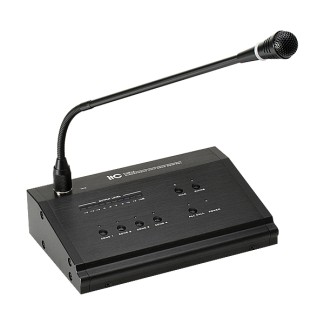

T-4012 4 Zone Remote Control Paging Microphone

T-4012 4 Zone Remote Control Paging Microphone

SYMBOL: T-4012

Price on request
availability: low number
print

Product description


The T-4012 is a remote paging microphone with 4 zone capacity for T-4060MP and T-4120MP amplifiers only.
They are linked by RJ45 port through CAT5 cable, max 6 microphones can be cascaded together for one amplifier.

The microphone is built-in a two & four tone chime selector, it is powered by amplifier at 24V DC. Maximum communication distance is 1kms. There are four zone selector, all call, talk and chime bush buttons, the 10 segments level meter is supplied to display the output level. Built-in microphone, chime and master volume control.


Features
* 4 zone remote paging microphone
* With zone, group zone and all zone paging capacity
* One amplifier capacity is 6 microphones
* The microphone was connected to the amplifier through CAT 5 cable
* The microphone is DC24V powered by the amplifier at max 1kms distance
* Built-in pre announcement chime of 2 & 4 tone selector
* With microphone, chime & master volume control
* With 10 segments level meter

Technical data

Output Signal/Output Impedance  1V/600Ω
Frequency Response 80Hz-18kHz
THD < 1%
Power Supply 24V DC
Dimensions 197x150x44mm
Weight 0.96kg
