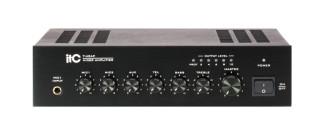

T-40AP 40W Desktop Mixer Amplifier

T-40AP 40W Desktop Mixer Amplifier

SYMBOL: T-40AP

Price on request
availability: low number
print

Product description

T-40AP 40W Mixer Amplifier
Mic1 input by combined connector of 1/4" phone jack and XLR with phantom power, Mic2 by 1/4" phonejack, Aux1 input by dual RCA, tel input by phoenix connector. Line output by dual RCA type. Mic with Voxpriority(with Vox level control) and telephone input with secondary input over all other inputs. 100V, 70Vand 4-16 ohms speaker output. AC 120V or 230V operation. Mic1-2, Aux1, tel, master volume control andbass/treble tone control. High temp, short circuit and over load protection.

Technical data

Power Supply

230 V

Rated Power Output

40W

Inputs

MIC: 5mV/600W

AUX: 400mV/15kW

Outputs

4Ω, 70V, 100V, COM

Frequency Response

50Hz - 16 kHz

S/N

MIC:66dB; AUX:80dB

Dimensions

360x274x66 mm

Weight

5.3 kg
