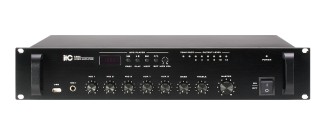

T-60U USB Mixer Amplifier

T-60U USB Mixer Amplifier

SYMBOL: T-60U

Price on request
availability: low number
print

Product description

  The USB mixer amplifier has power 60W. It is featured of three balanced microphone inputs, two aux inputs and one EMC input.

Priority muting is achieved via EMC input for overriding other inputs except Mic1 on front panel. Individual gain controls are provided for Mic 1-3 and Aux 1-2, bass and treble controls and master volume control are provided for overall tone control. 70V, 100V and low impedance 4-16ohms speaker outputs are provided. Extensive protection from short-circuit, overload and high temp.


Features
* With USB port and fluorescent screen to display the sound number
* Four function buttons: previous, play/stop, next and repeat
* Remote control over USB for EQ, volume up, volume down & mute
* Mixer amplifier for paging and background music system
* In 2U height
* 70V, 100V and low impedance 4-16ohm speaker output
* Three Mic inputs by phone jack type
* Mic 1with VOX priority and VOX level on rear panel
* Mic 2-3 by phone jack rear on rear panel
* Two Aux Inputs and 2 line inputs for spare use
* One EMC priority input
* EMC has priority over all inputs except MIC1
* Mic 1-3, Aux 1-2 and master volume controls and bass/treble tone control
* High temp, overload & short-circuit protection

Technical data

Power Supply 230 V
Rated Power Outputs 60 W
Outputs 4Ω, 70V, 100V
Frequency Response 50Hz - 16 kHz
THD < 0,5%
S/N MIC:66dB; AUX: 80dB
Dimensions 19"/2U
Weight 7,2 kg
