T-6233 4x8 audio matrix

T-6233 4x8 audio matrix

SYMBOL: T-6233

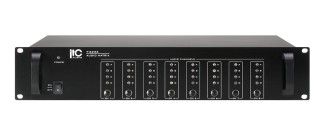

High-voltage audio matrix T-6233 which provides switching of 4 audio signals to 8 outputs. 4 inputs: A, B, C and EMC 1 (D) can be switched to CH1-CH8 outputs.

Price on request
availability: average number
print

Product description

  Alarm input (D) has priority over all other inputs which can mute these inputs. Expandable to max. 8 units whereby system has 32 inputs and 64 outputs. Microcomputer control, stores the settings in case of power off, and works automatically when power on. COM port allows control by computer or can be manually controlled.

Technical data

Power Supply 220-240V
Power Consumption 15W
Inputs 4
Outputs 8
Weight 5kg
Dimensions 19"/2U

Documents for download
