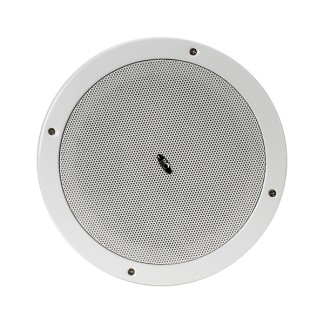

T-105S 5 Inch Surface Mount Ceiling Loudspeaker
Speaker designed for installation in the ceiling - surface mounted. 100V line technique.
Product description
The T-105S is a surface mount ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 5” speaker driver is designed of wide frequency response 110-14.5kHz, power output is 3w, 6w & 9w. The metal grille, metal baffle and metal back cover are in attractive white color.
The surface mount type is designed for some special application where cutting hole in roof is impossible, so the speaker needs to be directly mounted to the surface of the roof or wall.
Features
Built-in 100v/70v transformer
Surface mount ceiling type loudspeaker
5” speaker unit
Power taps 3w-6w-9w @100V
Metal grille, metal baffle and metal back cover
Surface mounted on wall or roof without cutting hole
Technical data
| Power | 9W |
| Frequency Response | 110Hz - 14.5kHz |
| SPL | 94dB |
| Voltage | 70/100V |
| Dimensions | 200x70mm |
| Weight | 0.71kg |
