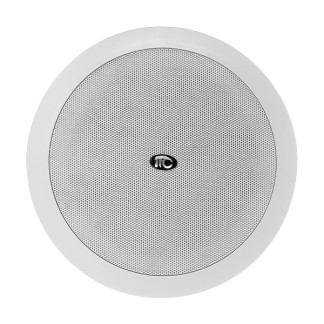

T-206P 5 Inch Coaxial Ceiling Loudspeaker
High quality speaker designed for installation in the ceiling. 100V line technique.
Product description
The T-206P is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 5”+1.5” coaxial speaker driver is designed of wide frequency response 100-18kHz, and its various power output from 3.75W, 7.5W, 15W & 30W could meet different room size applications. The power taps is convenient to switch the input from 100V to 70V or 8Ω, thus this speaker support both high impedance input and low impedance input use. The metal grille, ABS baffle and ABS back cover are painted in attractive white color. Its flush mount type makes the easy and secure installation.
Features
Built-in 100v/70v transformer
In-ceiling type loudspeaker
5” +1.5” coaxial speaker unit
Power output 3.75W, 7.5W, 15W & 30W @100V
Built-in crossover for hi-fi use
Line input: 100V, 70V or 8Ω
Metal grille, ABS baffle & ABS back cover
Paint in white color
Secure flush mount installation
Technical data
| Power | 30W |
| Frequency Response | 100Hz - 18kHz |
| SPL | 89dB |
| Voltage | 70/100V/8Ω |
| Cutout Size | 210mm |
| Dimensions | 240 x 155mm |
| Weight | 2,1 kg |
