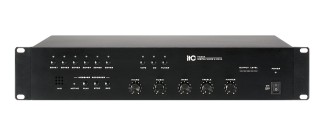

T-6245 6 Zone Mixer with Voice Recorder

T-6245 6 Zone Mixer with Voice Recorder

SYMBOL: T-6245

Price on request
availability: average number
print

Product description

Features
* Mixer with 6 zone speaker selector for source selection and zone control
* Build-in mic and recorder for easy voice message recording and storage
* 3 audio sources direct selection on front panels
* 6 zone selection buttons on front panel
* 6 zone paging console work together with the mixer through RJ45 port for remote control
and announcement
* Mic input by XLR type with phantom power and gain control
* 3 aux inputs for tape, CD and tuner
* Built-in chime, whose remote trigger and volume is provided
* 3 voice messages broadcast in continuous and once modes
* 3 channel pre outputs: music, music/page and page
* 6 zone line outputs for power amplifier
* Volume control is provided for mic, music, mater, record and message broadcast, plus bass
and treble ton e contro l
* Indications include zone selector, source selector, record state, power and output level
meters.
* 4 levels of priority from high to low: remote paging console, Mic1, chime, pre-recorded
Message

Technical data

Power Supply

230 V

Input 1xMIC

 -50/-2dB

Outputs 3x AUX

200-500mV/47kW

Outputs

3 x 0 dB

Frequency Response

40Hz - 20 kHz

S/N

MIC:68dB; AUX:90dB

Dimensions

 19”/2U

Weight

 6,6 kg

Documents for download
