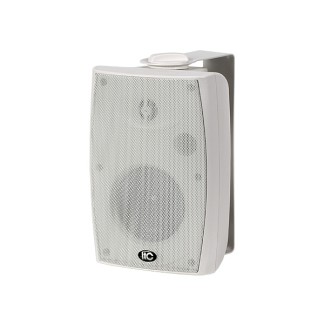

T-774HW 4 Inch Two Way Wall Mount Speaker

T-774HW 4 Inch Two Way Wall Mount Speaker

SYMBOL: T-774HW

Wall mount indoor/outdoor speaker. Switchable power taps. 100V line technique.

Price on request
availability: low number
print

Product description

The T-774H is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.

The built-in 4”+1.5” two ways speaker driver is designed of wide frequency response 120-18kHz, the multiple power taps 2.5W, 5W, 10W & 20W are helpful for different applications varies from room size and ambient noise surroundings.

The metal grille, ABS enclosure and stainless mounting bracket are of white color. Easy and secure wall mount installation through the supplied mounting bracket.

Features
Built-in 100v/70v transformer
Wall mount type loudspeaker
4” +1.5” two ways speaker unit
Power taps 2.5w-5w-10w-20w @100V plus 8ohm
Metal grille, ABS enclosure and stainless mounting bracket

Technical data

Power 20W
Frequency Response 120Hz-18kHz
SPL 86dB
Voltage 70V/100V
Power Taps 2,5W/5W/10W/20W/8W
Dimensions 276x170x170mm
Weight 2,3kg
