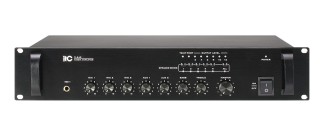

TI-240 5 Zones Integrated Amplifier (Phone Jack MIC Input)

The basic public address 5 zone mixer amplifiers has power 240W. It is featured of 3 microphone inputs, 2 aux inputs and 1 EMC input. Priority muting is achieved via EMC for overriding other inputs except Mic1 on front panel.

Individual gain controls are provided for Mic 1-3 and Aux 1-2, bass and treble controls and master volume control are provided for overall tone control. 70V, 100V and low impedance 4-16ohms speaker outputs are provided. Extensive protection from short-circuit, overload and high temp.


Features
* Mixer amplifier for paging and background music system
* Rated power 240W
* 2U rack mount
* 70V, 100V and low impedance 4-16ohm speaker output
* 5 zone and all zone speaker terminals
* Three Mic inputs by phone jack type
* Mic 1 with VOX priority and VOX level on front panel
* Mic 2-3 by phone jack on rear panel
* Two Aux Inputs and 2 line inputs for spare use
* One EMC priority input
* EMC has priority over all inputs except MIC1
* Mic 1-3, Aux 1-2 and master volume controls and bass/treble tone control
* Short circuit, overload and high temp protection
