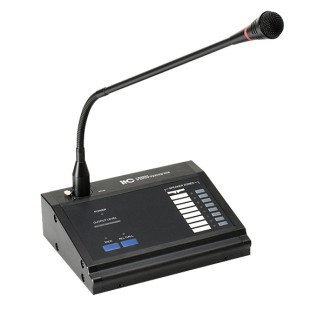

T-8000A Remote Paging Console
Product description
Features
* The T-8000A remote paging console is connected with T-8000 through universal industrial standard CAT 5 for zone announcement or communication at a remote and different location from the control center.
* Each controller provides four RJ45 ports for the remote paging console.
* The CAT 5 wiring is not only featured of cost-effective, convenient layout, but alsointegration of RS 485 communication and audio transmission together.
* Extra DC 24V power supply
* Eight zone selector with state indication.
* Talk and all zone paging swift keys are provided.
* 2 and 4 tones chimes with selector and off switch.
* Volume controls are provided for chime and microphone.
* Full indications includes individual zone, all zone, busy, paging, power, output level to provide a direct visualization.
Technical data
| Power Supply |
24 V DC |
| Frequency Response | 50 Hz - 18 kHz |
| Input |
5 mV/600Ω |
| S/N |
> 75dB |
| THD |
< 0,1 % |
| Indicators |
zone busy, output level |
| Port |
RJ 45 |
| Transmision Protocol |
RS 485 |
| Dimensions | 180x145x58 mm |
